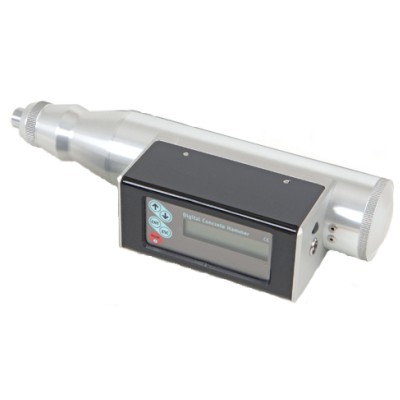

Elcometer 182 Digital Concrete Test Hammer

Mô tả

The charts on the body of the Elcometer 181 correspond to the test hammer angle, average error, conversion scales, MPa and p.s.i.

The Elcometer 182 digital test hammer works in exactly the same way but the results are recorded digitally with the ability to set test parameters and factors including age, shape and correction factors.

elcometer-182-digital-concrete-test-hammer

Đặc điểm kỹ thuật

Model	Description	Part Number
Model	Description	UK 240V	EUR 220V	US 110V
Elcometer 182	Elcometer 182 Digital Concrete Test Hammer	W182---1A	W182---1B	W182---1C
Accessories	Calibration Anvil (supplied complete with Test Certificate)	TW99919563
	Replacement Mains Adaptor	TW18219475-1	TW18219475-2	TW18219475-3
	Mini Printer	X1829964B	X1829964C	X1829964D

Impact Energy	2.207 Nm
Accuracy	Better than ± 2 Rebound Number(s) (When tested on Calibration Anvil at 80)
Resolution	0.1 Rebound Number
Range	10 to 70 MPa
Unit Selection	N/mm2; MPa; kg/cm2; PSI
Autonomy (Continous Use)	>5 Hours
Dimensions	Hammer: 280mm (11.02") length x 55mm (2.17") diameter In Case: 190 x 100 x 350mm (7.48" x 3.94" x 13.78")
Weight	2kg (4.4lbs) with case
Shipping List	Hammer, battery charger, serial cable for PC, abrasive stone, instruction manual, calibration certificate and carry case
