| Part Number |
Description |
| K0001615KITA |
Elcometer 1615 Kit A to meet ISO 6272:1993 Standard |
| K0001615KITB |
Elcometer 1615 Kit B to meet ISO 6272 Part 2:2002 Standard |
| K0001615KITC |
Elcometer 1615 Kit C to meet ASTM D2794 Method 2, BS6486:1984, EN 12206-1 Standards |
| K0001615KITD |
Elcometer 1615 Kit D to meet ISO 6272 Part 1:2002, BS EN ISO 6272-1:2004 Standards |
| K0001615KITE |
Elcometer 1615 Kit E to meet NF T30-017:1989 Standard |
| K0001615KITF |
Elcometer 1615 Kit F to meet ISO 6272:1993, ISO 6272-2:2002 Standards |
| Packing List |

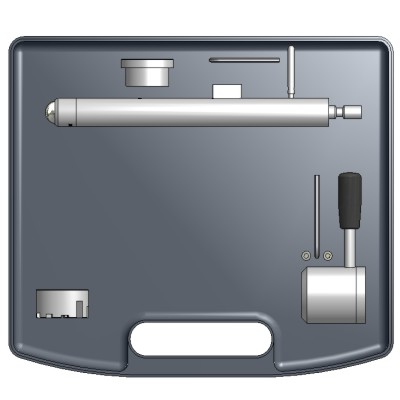

Kit A: Sample clamp, 27mm (1.06") die, 1kg (2.2lb) falling weight with a 20mm (0.79") punch, stop collar, 2 x hexagonal wrench and operating instructions |
| |
Kit B: Indenter with 15.9mm (0.6") punch, die 16.3mm (0.64"), falling 1kg (2.2lb) weight, hexagonal wrench and operating instructions |
| |
Kit C: Indenter with 15.9mm (0.6") punch, 2lb (0.91kg) falling weight and operating instructions |
| |
Kit D: 1kg (2.2lb) falling weight with 20mm (0.79") punch, 27mm (1.06") die, stop collar, hexagonal wrench and operating instructions |
| |
Kit E: 400g (0.88lb) falling weight with a 23mm (0.9") punch, 22mm (0.87") die, sample clamp, hexagonal wrench and operating instructions |
| |
Kit F: Sample clamp, stop collar, 27mm (1.06") die, 1kg falling indenter with a 20mm (0.79") punch, indenter with 15.9mm (0.6") punch, 12.7mm (0.5") punch, 16.3mm (0.6") die, falling 1kg weight, 2 x hexagonal wrench and operating instructions |
| Certificate available |
Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory. |
Can be used in accordance with:
ASTM D 2794:2004, ASTM D 5420, AS/NZS 1580.406.1, BS 6496:1984, BS 3900 E13, ECCA T5, EN 12206-1:2004, EN 13523-5:2001, ISO 6272:1993, ISO 6272-1:2002, ISO 6272-2:2002, JIS K 5600-5-3:1999, NF T30-017:1989
Standards in grey have been superseded but are still recognised in some industries.
